Description

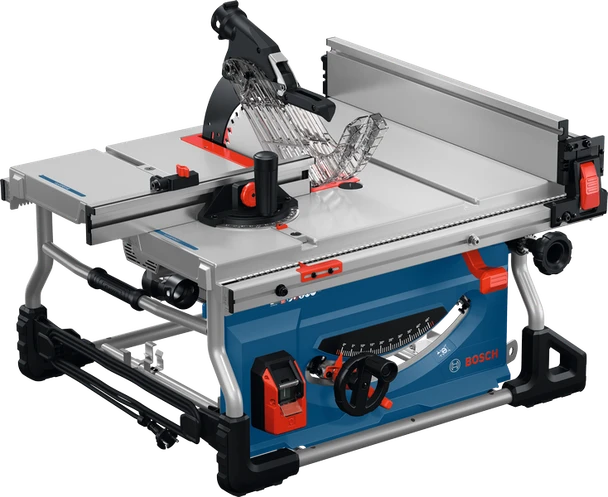

Cabinet installers, carpenters, and framers often struggle to maintain accuracy over extended rip cuts. The PRO HEAVY DUTY GTS100-254 table saw delivers unmatched performance with a best-in-class 2200 W power and a cutting height of 100 mm, eliminating the need to flip over your workpiece to reduce time and effort. Its convenient rack-and-pinion fence ensures rip cuts up to 825 mm are precise and effortless. Designed for workplace safety and comfort, it features two dust ports compatible with Click & Clean systems, unique clamp zones, featherboard compatibility in the rip fence as well as soft start and a fast brake system for increased protection. You’ll achieve precise, toolless bevel undercuts from 0° to -2° and 45° to 47°, with an intuitive automatic reset to standard 0° and 45° angles—perfect for efficient operation.
Technical Specifications
ADDITIONAL DATA
| Parameter | Details |
|---|---|
| Rated input power | 2,200 W |
| Saw blade diameter | 254 mm |
| Incline setting | 47 ° L / -2 ° R |
| Table size | 713 x 579 mm |
| No-load speed | 4,500 rpm |
| Saw blade bore diameter | 30 mm |
| Weight | 28.7 kg |
| Tool dimensions (width x length x height) | 694 x 713 x 363 mm |
| Cutting height 90° | 100 mm |
| Cutting height 45° | 68 mm |
Key Features
- Best-in-class cutting height of 100 mm: eliminates flipping workpieces for faster, precise long cuts
- Precise rip cuts up to 825 mm: rack-and-pinion fence ensures unmatched accuracy
- Two dust ports, unique clamp zones, featherboard compatibility, fast brake system, and soft start functionality to improve user protection and comfort during use
- Toolless bevel undercut adjustments with automatic reset to 0° and 45°: so you can focus on your craft without distractions
Equipment & Application
The PRO HEAVY DUTY GTS100-254 table saw delivers unmatched performance for precise, long cuts in wood.
