Description

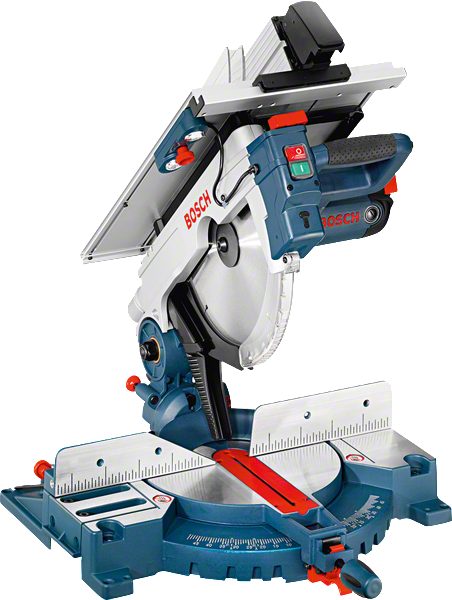

The GTM 12 JL Professional combination saw is the ideal multi-functional saw when versatility is needed. It combines both a mitre saw and a table saw in one, making it versatile for many applications. The combination saw´s powerful 1,800 W motor makes fast progress possible, in both table and mitre saw configurations. Its integrated laser makes it easy to achieve precise results.
Technical Specifications
ADDITIONAL DATA
| Parameter | Details |
|---|---|
| Rated input power | 1,800 W |
| Saw blade diameter | 305 mm |
| Mitre setting | 48 ° L / 48 ° R |
| Bevel setting | 47 ° L / 2 ° R |
| Saw blade bore diameter | 30 mm |
| Cutting capacity, 0° | 95 x 150 mm |
| Cutting capacity, 45° mitre | 95 x 90 mm |
| Tool dimensions (width x length x height) | 660 x550 x400 mm |
| No-load speed | 3,800 rpm |
| Cutting height of table saw | 51 mm |
| Weight | 21 kg |
TOTAL VIBRATION VALUES (SAWING WOOD)
| Parameter | Details |
|---|---|
| Vibration emission value ah | 3.4 m/s² |
| Uncertainty K | 1.5 m/s² |
SAWING WOOD
| Parameter | Details |
|---|---|
| Vibration emission value ah | 3.4 m/s² |
| Uncertainty K | 1.5 m/s² |
Key Features
- Combines mitre saw and table saw in one, making it versatile in many applications
- Powerful 1,800 W motor makes fast progress possible, in both table and mitre saw configurations
- Integrated laser makes precise results easy to achieve
Equipment & Application
This combination saw is intended for sawing wood. It is compatible with the Bosch Click & Clean dust extraction system as well as various stands.
