Frequently bought together:
Description

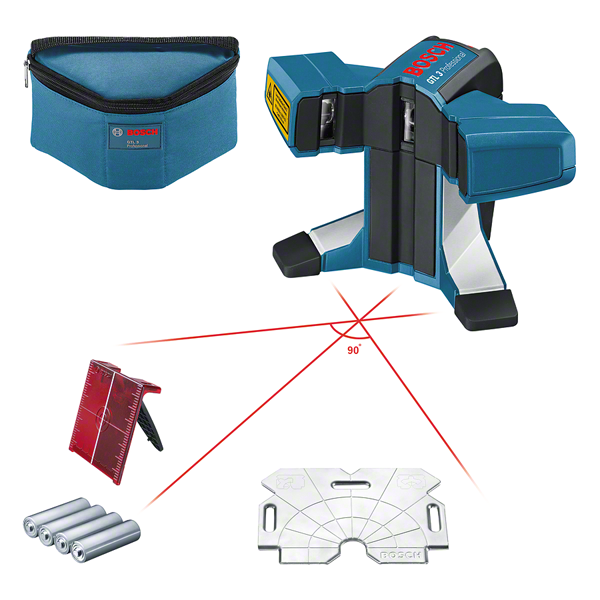

Product Type: Tile Laser
Technical Specifications
ADDITIONAL DATA
| Parameter | Details |
|---|---|
| Dust and splash protection | IP54 |
| Working range, value | 20 m |
| Laser diode | 630 – 650 nm |
| Operating temperature | -10 – 50 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 2 |
| Working range with target plate | 20 m |
| Angular accuracy (between 0 – 90° angle) | ± 0.2 mm/m |
| Power supply | 4 x 1.5 V LR6 (AA) |
| Operating time (max.) | 18 h in 2-line mode, 12 h in 3-line mode |
| Weight, approx. | 0.44 kg |
| Projection | 3 lines |
Key Features
- In addition to the two laser lines at a 90° angle, it projects a third line at 45° for precise and fast alignment and laying of wall and floor tiles
- High accuracy of 0.2 mm/m
- Compact and lightweight design for optimum ease of use
