Description

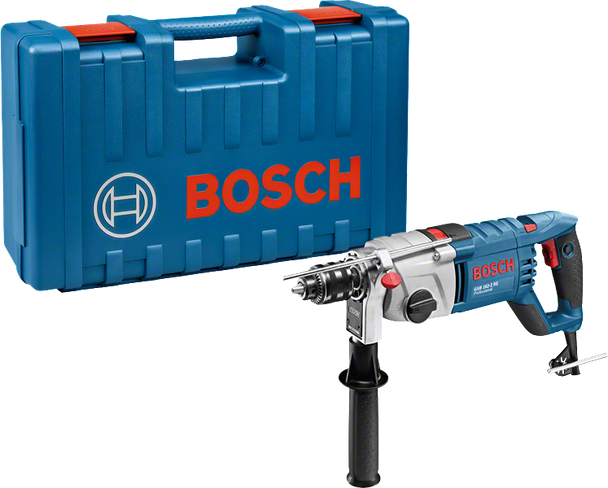

The GSB 162-2 RE Professional is a high-powered 2-gear corded impact drill designed for the toughest applications including diamond dry-drilling. Its extremely strong 1,500 W motor with a high overload capacity and high torque is ideal for intense and heavy-duty applications. Its speed is specifically optimised to enable a fast drilling progress up to 162 mm in diameter even when using diamond core cutters in the non-impact function. The impact drill’s rotation control clutch ensures an increased level of user protection even when working in the toughest materials.
Technical Specifications
ADDITIONAL DATA
| Parameter | Details |
|---|---|
| Rated input power | 1500 W |
| Voltage, electrical | 240 V |
| Bit holder | 5/8"-16 UNF |
| No-load speed, 1st gear | 0 – 750 rpm |
| No-load speed, 2nd gear | 1,800 rpm |
| Power output | 840 W |
| Weight | 4.8 kg |
| Impact rate at no-load speed | 0 – 12,750 / 30,600 bpm |
| Rated speed | 555 / 1,300 rpm |
| Rated torque | 17.0 / 5.0 Nm |
| Drill spindle connecting thread | 5/8"-16 UNF |
| Chuck capacity, min./max. | 3 – 16 mm |
DRILLING RANGE
| Parameter | Details |
|---|---|
| Drilling diameter in wood | 50 / 32 mm |
| Drilling diameter in steel | 20 / 14 mm |
| Drilling diameter in masonry | 162 / 82 mm |
TOTAL VIBRATION VALUES (DRILLING IN METAL)
| Parameter | Details |
|---|---|
| Vibration emission value ah | 6 m/s² |
| Uncertainty K | 1.5 m/s² |
TOTAL VIBRATION VALUES (IMPACT DRILLING IN CONCRETE)
| Parameter | Details |
|---|---|
| Vibration emission value ah | 23 m/s² |
| Uncertainty K | 3 m/s² |
TOTAL VIBRATION VALUES (SCREWDRIVING)
| Parameter | Details |
|---|---|
| Vibration emission value ah | 1.5 m/s² |
| Uncertainty K | 0 m/s² |
TOTAL VIBRATION VALUES (THREAD-CUTTING)
| Parameter | Details |
|---|---|
| Vibration emission value ah | 1.5 m/s² |
| Uncertainty K | 0 m/s² |
DRILLING IN METAL
| Parameter | Details |
|---|---|
| Vibration emission value ah | 6 m/s² |
| Uncertainty K | 1.5 m/s² |
IMPACT DRILLING IN CONCRETE
| Parameter | Details |
|---|---|
| Vibration emission value ah | 23 m/s² |
| Uncertainty K | 3 m/s² |
SCREWDRIVING
| Parameter | Details |
|---|---|
| Vibration emission value ah | 1.5 m/s² |
| Uncertainty K | 0 m/s² |
THREAD-CUTTING
| Parameter | Details |
|---|---|
| Vibration emission value ah | 1.5 m/s² |
| Uncertainty K | 0 m/s² |
Key Features
- Extremely powerful 1,500 W motor with high overload capacity and high torque is ideal for heavy-duty applications
- Optimised speed for fast drilling progress up to 162 mm in diameter even with diamond core cutters without impact function
- Rotation control clutch for an increased level of user protection even when working in the toughest materials
Equipment & Application
This tool is intended for drilling in masonry, stone, wood, and metal.
